Precast RCC box culvert, 300 to 2500 mm
Box Culvert Technical sheet
Reinforced precast RCC box culvert built for heavy-load cross-drainage under roads, highways, railways, and flood-prone infrastructure corridors.
- 01 Size range
- 300×300 mm to 2500×2500 mm
- 02 Unit length L
- 2000 / 1500 mm
- 03 Concrete grade
- M50–M75
- 04 Standard sizes
- 25
Where to use the precast box culvert
The Trilok Infratech box culvert is a closed precast RCC unit for cross-drainage under roads and railways, made in Surat, Gujarat. It is cast in M50–M75 concrete in 25 sizes from 300 × 300 mm to 2,500 × 2,500 mm, in 2,000 mm units (1,500 mm at 2,500 mm width), with plug & socket joints sealed by rubber gaskets.
Trilok's Precast RCC Box Culvert is made for cross-drainage beneath roads, railways, and flood-prone corridors. Cast offsite to exact specifications, it is craned into position on-site instead of being cast in place. From small access culverts to large highway-grade structures, we manufacture to the dimensions your project demands.
- F/01
Durable Material
Manufactured with M50 to M75 grade RCC and reinforcement steel.
- F/02
Efficient Design
Closed rectangular profile allows high-volume water passage while supporting road or rail traffic above.
- F/03
Dual Application
Used for cross-drainage under highways, railways, irrigation canals, and flood diversion channels.

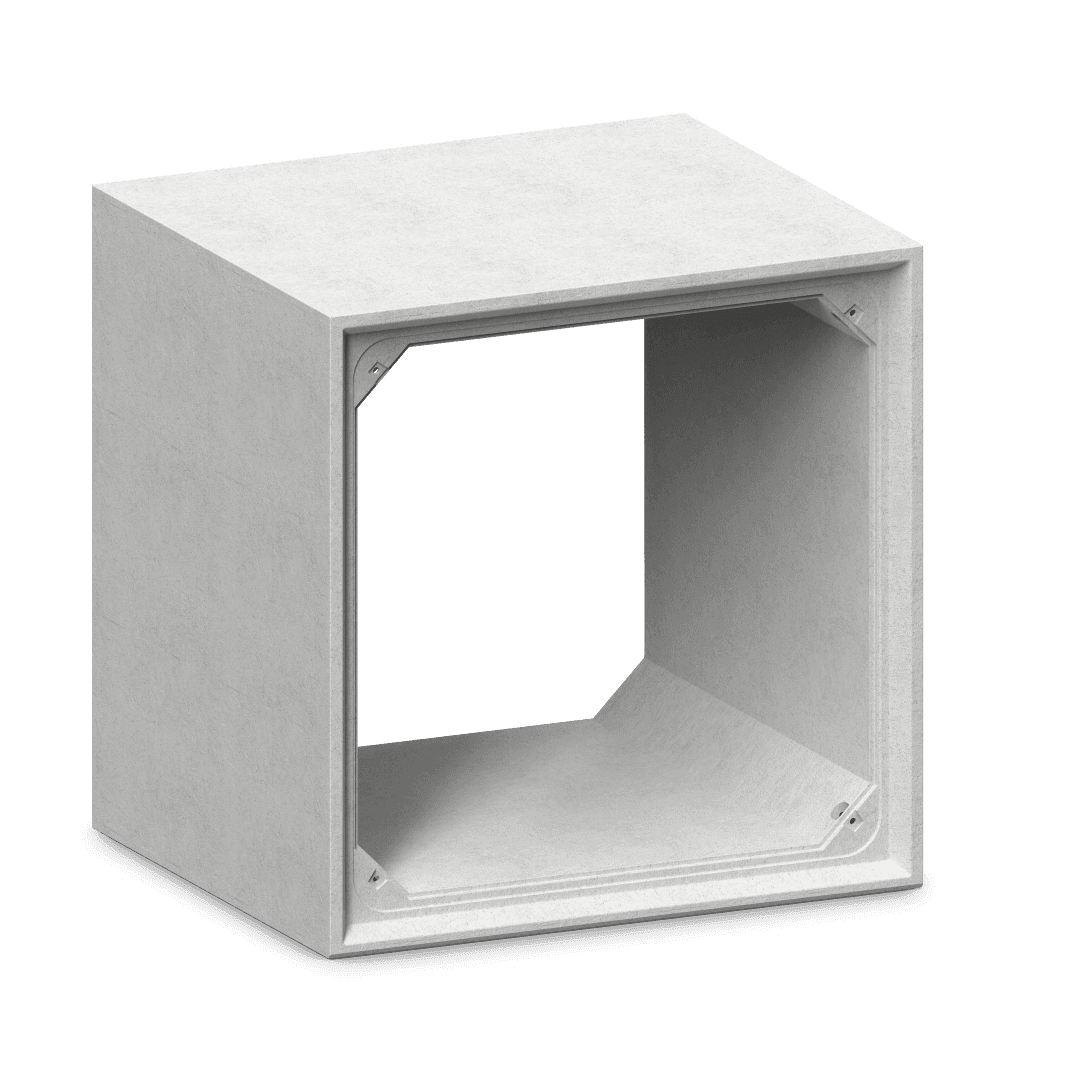

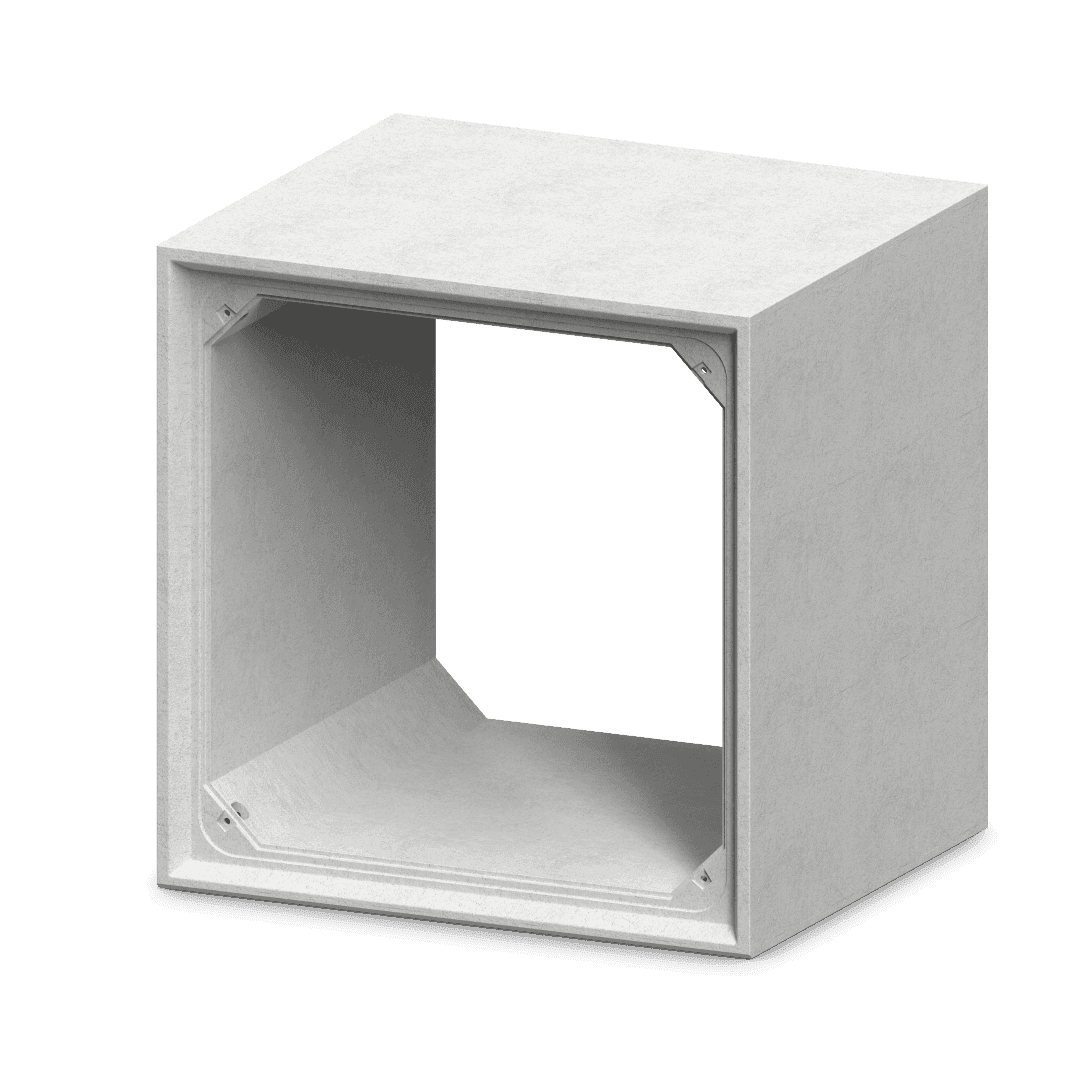

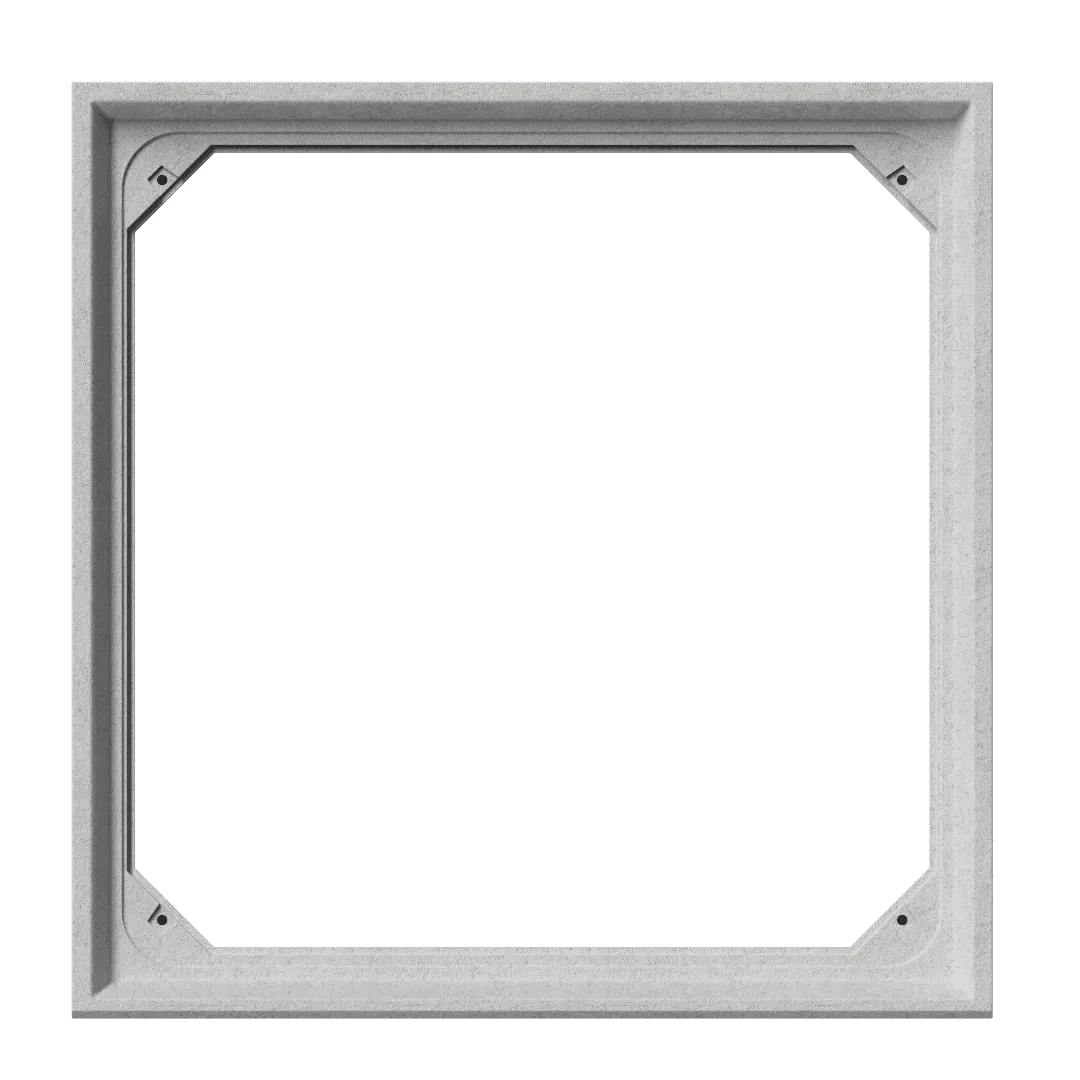

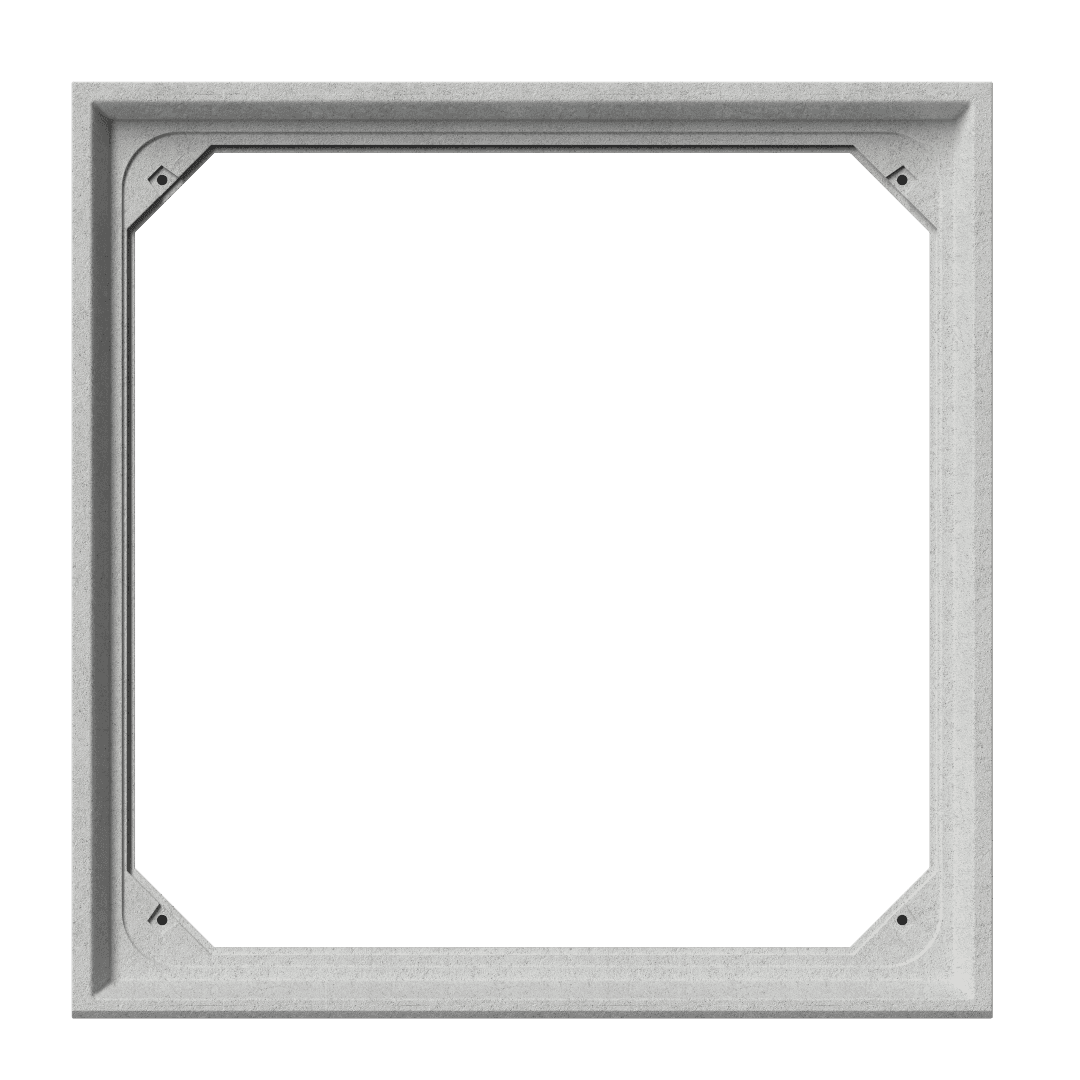

Configure in 3D
Pick a standard size, turn the Box Culvert around and add it straight to your quote.
BC
Box Culvert
1200 × 1400 mm · L 2000 mm
Casting 3D model…
Box culvert sizes and dimensions
All dimensions in mm, transcribed from the published tables. Hover or focus a column letter to see what it measures.
T/01 · 25 rows · mm

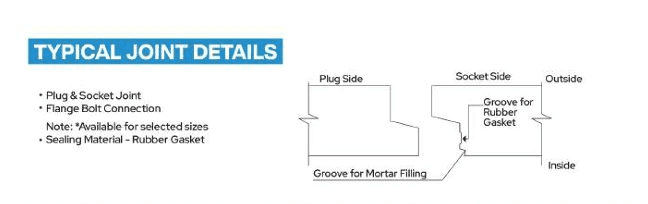

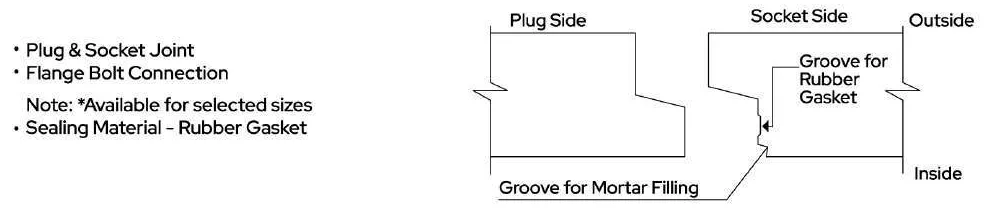

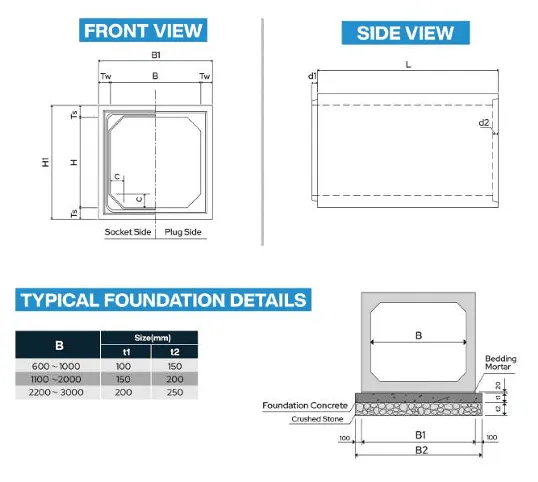

Typical Joint Details - Dimension Table

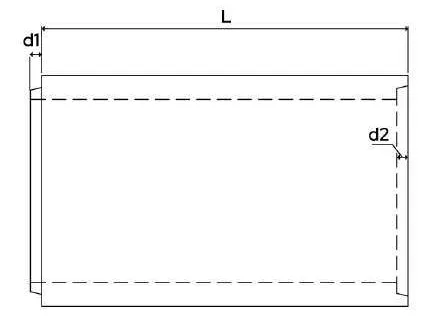

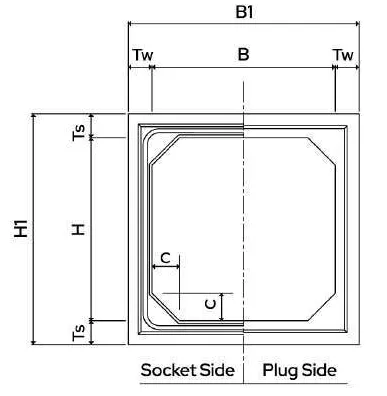

| B × H: nominal size = inner clear width B × inner clear height H of the opening, in mm. | Inner clear width (span) of the opening, between the inside faces of the two side walls (front view). | Overall outer width of the box across both side walls (front view). | Inner clear height of the opening, between the top and bottom slabs (front view). | Overall outer height of the box across both slabs (front view). | Unit (laying) length of one precast segment along the barrel (side view). The L dimension line runs from the end face at the d1 end to the far end, so the small d1 projection appears to sit outside L. | Slab thickness: the top and bottom slabs are both labelled Ts in the front view. For 300 × 300 the table gives two values ("95/80"). | Side wall thickness: both side walls are labelled Tw in the front view. | Size of the internal corner haunch (45° chamfer at the inside corners of the opening), drawn with equal horizontal and vertical legs C in the front view. For 300 × 300 and 600 × 600 the table gives "C30 / R50" and "C50 / R80". | Small axial offset at one end of the unit in the side view, outside the L dimension; appears to be the projection of the plug (spigot) end of the plug & socket joint. | Small axial step at the opposite end in the side view; appears to be the depth of the socket recess that receives the next unit's plug. | Actions |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 × 300 | 300 | 416 | 300 | 475 | 2000 | 95/80 | 55 | C30 / R50 | — | — | 3D |
| 500 × 500 | 500 | 680 | 500 | 740 | 2000 | 120 | 90 | 50 | — | — | 3D |
| 600 × 600 | 600 | 775 | 600 | 860 | 2000 | 130 | 80 | C50 / R80 | — | — | 3D |
| 800 × 800 | 800 | 1060 | 800 | 1060 | 2000 | 130 | 130 | 100 | 60 | 60 | 3D |
| 600 × 1000 | 600 | 860 | 1000 | 1260 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 900 × 1000 | 900 | 1160 | 1000 | 1260 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 1000 × 1000 | 1000 | 1260 | 1000 | 1260 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 1200 × 1000 | 1200 | 1460 | 1000 | 1260 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 1000 × 600 | 1000 | 1260 | 600 | 860 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 800 × 1400 | 800 | 1060 | 1400 | 1660 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 900 × 1400 | 900 | 1160 | 1400 | 1660 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 1000 × 1400 | 1000 | 1260 | 1400 | 1660 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 1200 × 1400 | 1200 | 1460 | 1400 | 1660 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 1300 × 1400 | 1300 | 1560 | 1400 | 1700 | 2000 | 150 | 130 | 150 | 60 | 60 | 3D |
| 1500 × 1400 | 1500 | 1760 | 1400 | 1700 | 2000 | 150 | 130 | 150 | 60 | 60 | 3D |
| 1400 × 1000 | 1400 | 1660 | 1000 | 1260 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 1400 × 1200 | 1400 | 1660 | 1200 | 1460 | 2000 | 130 | 130 | 150 | 60 | 60 | 3D |
| 2000 × 1200 | 2000 | 2320 | 1200 | 1560 | 2000 | 180 | 160 | 200 | 80 | 80 | 3D |
| 2000 × 1500 | 2000 | 2320 | 1500 | 1860 | 2000 | 180 | 160 | 200 | 80 | 80 | 3D |
| 2000 × 1800 | 2000 | 2320 | 1800 | 2160 | 2000 | 180 | 160 | 200 | 80 | 80 | 3D |
| 2000 × 2000 | 2000 | 2320 | 2000 | 2360 | 2000 | 180 | 160 | 200 | 80 | 80 | 3D |
| 2500 × 1500 | 2500 | 2900 | 1500 | 1940 | 1500 | 220 | 200 | 200 | 80 | 80 | 3D |
| 2500 × 1800 | 2500 | 2900 | 1800 | 2240 | 1500 | 220 | 200 | 200 | 80 | 80 | 3D |
| 2500 × 2000 | 2500 | 2900 | 2000 | 2440 | 1500 | 220 | 200 | 200 | 80 | 80 | 3D |
| 2500 × 2500 | 2500 | 2900 | 2500 | 2940 | 1500 | 220 | 200 | 200 | 80 | 80 | 3D |
Note All dimensions in mm. Joint: Plug & Socket Joint; Flange Bolt Connection (available for selected sizes); Sealing Material - Rubber Gasket.
Last updated:
T/02 · 4 rows · mmNot in the standard range · confirm availability
Additional sizes
| B × H: nominal size = inner clear width B × inner clear height H of the opening, in mm. | Inner clear width (span) of the opening, between the inside faces of the two side walls (front view). | Overall outer width of the box across both side walls (front view). | Inner clear height of the opening, between the top and bottom slabs (front view). | Overall outer height of the box across both slabs (front view). | Unit (laying) length of one precast segment along the barrel (side view). The L dimension line runs from the end face at the d1 end to the far end, so the small d1 projection appears to sit outside L. | Slab thickness: the top and bottom slabs are both labelled Ts in the front view. For 300 × 300 the table gives two values ("95/80"). | Side wall thickness: both side walls are labelled Tw in the front view. | Size of the internal corner haunch (45° chamfer at the inside corners of the opening), drawn with equal horizontal and vertical legs C in the front view. For 300 × 300 and 600 × 600 the table gives "C30 / R50" and "C50 / R80". | Small axial offset at one end of the unit in the side view, outside the L dimension; appears to be the projection of the plug (spigot) end of the plug & socket joint. | Small axial step at the opposite end in the side view; appears to be the depth of the socket recess that receives the next unit's plug. |
|---|---|---|---|---|---|---|---|---|---|---|
| 900 × 900 | 900 | 1120 | 900 | 1160 | 2000 | 130 | 110 | 150 | 60 | 55 |
| 1200 × 1200 | 1200 | 1460 | 1200 | 1500 | 2000 | 150 | 130 | 50 | 60 | 55 |
| 1500 × 1500 | 1500 | 1760 | 1500 | 1800 | 2000 | 150 | 130 | 150 | 60 | 55 |
| 3000 × 3000 | 3000 | 3440 | 3000 | 3480 | 1000 | 240 | 220 | 300 | 60 | 55 |
Note All dimensions in mm. Customized sizes available for mass quantity.
Last updated:
T/03 · 3 rows · mm

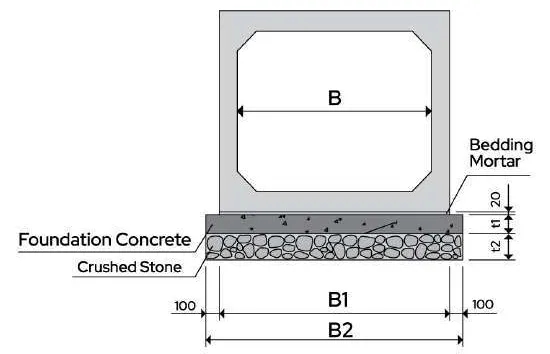

Typical Foundation Details
